Dudley Miniflo Concealed Cistern

Designed to fit in to smaller spaces

Code322875

Contact us

Overview

Our extensive range of toilet cisterns caters to diverse needs, whether you’re outfitting a cosy home or a bustling commercial space. Explore our collection of both concealed and exposed cisterns, each designed for optimal performance and durability.

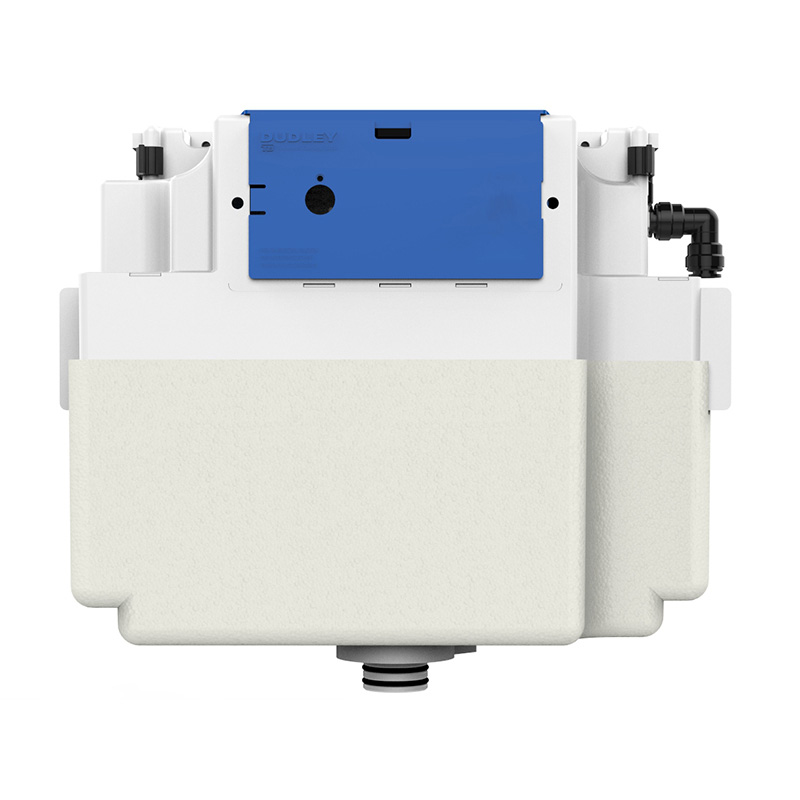

The Dudley Miniflo Concealed Cistern has been designed to fit in to smaller spaces with compact dimensions.

Features

  • High quality concealed cistern designed to fit in to smaller spaces
  • 411mm [W] x 276mm [H] x 131mm [D]
  • Top access
  • Air tubes enable button or plate to be installed up to 250mm away from cistern
  • Compact dimensions enables the cistern to fit neatly into 150mm ducts
  • Internal overflow warning
  • Fitted with Hydroflo Side inlet
  • Fitted with Niagara Pneumatic Valve
  • Fitted with 51mm Chrome Plated Button
  • Other options available, Bottom Inlet, Single Flush, Buttons and Plates

Frequently asked questions

We offer a range of push buttons and push plates, most of which are compatible with the Vantage & Miniflo cisterns

We used the Dudley Niagara Dual Flush Flushing Valve Unit (Part Number 327628) in both the Vantage and Miniflo cisterns.

Yes you can. We can supply an upgrade kit to convert a button operated Vantage/Miniflo cistern to be able to be used with our Electroflo infrared non-touch operation.

Yes you can. You would need to replace the single flush Niagara Pneumatic Flushing Valve with a Dual Flush Niagara Pneumatic Flushing Valve (part number 327628), and then replace the single flush button with one of our range of push buttons or push plates.

Yes you can. In order to convert the cistern to a single flush, you would need to replace the dual flush button with one of our single flush buttons. Most of our dual flush buttons has a single flush equivalent. Connect the clear/white pneumatic tube (full flush) from the dual flush button to the back of the single flush button. Discard the green pneumatic tube (reduced flush). If replacing the Niagara Flush Valve, connect the clear/white tube from the single flush push button to the full flush side of the Niagara Flushing Valve. Identified, by the full circle symbol below the connecting spigot on the valve.
